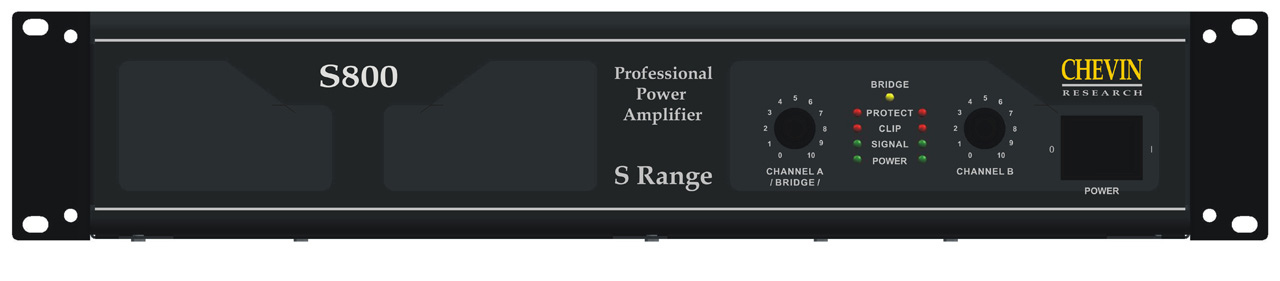

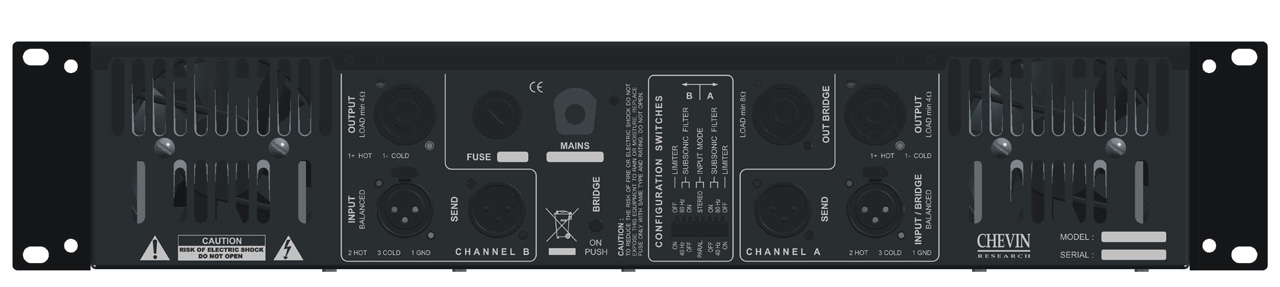

S800 - Amplificatore 2 x 800 W @4 ohm
Specifications
-
Output Power Both channel driven, 2 Ω, 1 kHz, 1 % THD 1600 W per channel Single channel driven, 2 Ω, 1 kHz, 1 % THD 1750 W / channel Both channel driven, 4 Ω, 1 kHz, 1 % THD 1100 W per channel Single channel driven, 4 Ω, 1 kHz, 1 % THD 1150 W / channel Both channel driven, 8 Ω, 1 kHz, 1 % THD 600 W per channel Single channel driven, 8 Ω, 1 kHz, 1 % THD 625 W / channel Bridge, 8 Ω, 1 kHz, 1 % THD 2200 W Bridge, 4 Ω, 1 kHz, 1 % THDΩ 3400 WTHD - 1 kHz, 8 Ω 0,02 % Frequency response 20 Hz – 20 kHz +0 /-1 dB - by 10 dB Frequency response -below nominal power 20 Hz – 50 kHz +0 /-1 dB Damping Factor 8 Ohm, 1kHz 200 S/n Ratio - 103 dB S/n Ratio “A“ weighted - 112 dB Input Sensitivity – by nominal power / 8 Ω 1.0 V Input Impedance balanced 20 kΩ Slew Rate / 8 Ω 20 V / μS Subsonic filter On / Off and 40 Hz / 80 HzLimiter On / OffControls Front: mains switch - volume control (both channels)Rear: SUBS. FILTER switch - BRIDGE switch Indicators BRIDGE : yellow LEDPROTECT, CLIP : red LEDSIGNAL : green LEDPOWER : blue LED Cooling step-switched fan Protections automatic limiter, short-circuit protection, thermal protection, protection against DC, overload protection., load-mismatch protection Power 230V AC 50Hz ; switched-mode PS Dimensions 483 x 88 x 380 mm Weight 12 kg
