S2000 - Amplificatore 2 x 1200 W @4 ohm

L'amplificatore S2000 è stato progettato per soddisfare tutti gli standard per l'amplificazione professionale. La sua verniciatura a polvere su piastre e telaio in acciaio riflettono la qualità di produzione dell'elettronica all'interno.

Specifications

Output Power Both channel driven, 2 Ω, 1 kHz, 1 % THD 1764 W per channel Single channel driven, 2 Ω, 1 kHz, 1 % THD 1922 W / channel Both channel driven, 4 Ω, 1 kHz, 1 % THD 1173 W per channel Single channel driven, 4 Ω, 1 kHz, 1 % THD 1260 W / channel Both channel driven, 8 Ω, 1 kHz, 1 % THD 700 W per channel Single channel driven, 8 Ω, 1 kHz, 1 % THD 730 W / channel Bridge, 8 Ω, 1 kHz, 1 % THD 2300 W Bridge, 4 Ω, 1 kHz, 1 % THD 3500 W THD - 1 kHz, 8 Ω 0,02 % Frequency response 20 Hz – 20 kHz +0 /-1 dB Frequency response -below nominal power 20 Hz – 50 kHz +0 /-1 dB Damping Factor 8 Ohm, 1kHz 200 S/n Ratio - 103 dB S/n Ratio “A“ weighted - 112 dB Input Sensitivity – by nominal power / 8 Ω 1.0 V Input Impedance balanced 20 kΩ Slew Rate / 8 Ω 20 V / μS Subsonic filter On / Off and 40 Hz / 80 HzLimiter On / OffControls Front: mains switch - volume control (both channels)Rear: SUBS. FILTER switch - BRIDGE switch Indicators BRIDGE : yellow LEDPROTECT, CLIP : red LEDSIGNAL : green LEDPOWER : blue LED Cooling step-switched fan Protections automatic limiter, short-circuit protection, thermal protection, protection against DC, overload protection., load-mismatch protection Power 230V AC 50Hz ; switched-mode PS Dimensions 483 x 88 x 380 mm Weight 12 kg

Technical specification

Output Power
Both channel driven, 2 Ω, 1 kHz, 1 % THD	1764 W per channel
Single channel driven, 2 Ω, 1 kHz, 1 % THD	1922 W / channel
Both channel driven, 4 Ω, 1 kHz, 1 % THD	1173 W per channel
Single channel driven, 4 Ω, 1 kHz, 1 % THD	1260 W / channel
Both channel driven, 8 Ω, 1 kHz, 1 % THD	700 W per channel
Single channel driven, 8 Ω, 1 kHz, 1 % THD	730 W / channel
Bridge, 8 Ω, 1 kHz, 1 % THD	2300 W
Bridge, 4 Ω, 1 kHz, 1 % THD	3500 W
Distortion, 1 kHz, THD %	< 0,02 %
Frequency response	20 Hz – 20 kHz +0 /-1 dB
- by 10 dB below nominal power	20 Hz – 50 kHz +0 /-1 dB
Damping Factor, 8 Ω, 1kHz	> 200
S/n Ratio	- 103 dB
S/n Ratio „A“ weighted	- 112 dB
Input Sensitivity – by nominal power / 8 Ω	1,0 V
Input Impedance balanced	20 kΩ
Slew Rate / 8 Ω	20 V / μS
Subsonic filter	On / Off 40 Hz / 80 Hz

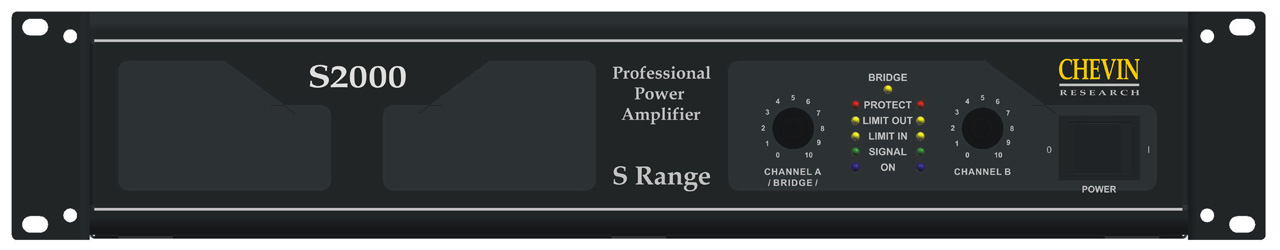

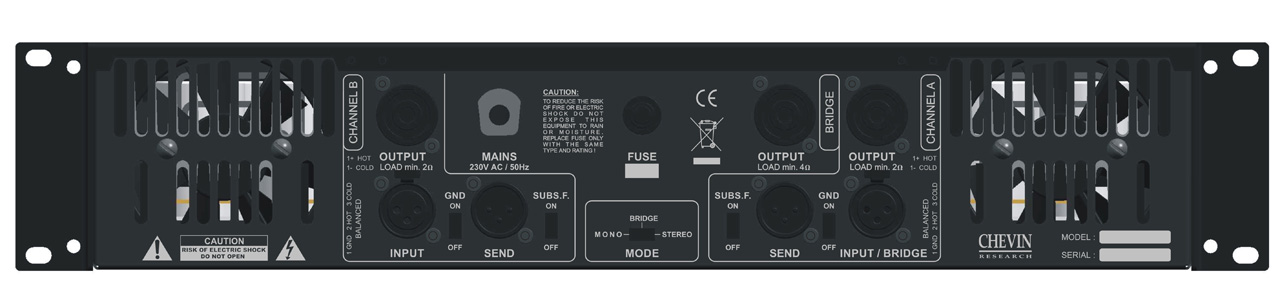

Controls	Front: mains switch gain control (both channels) Rear: mode selection switch GND and subs. filter switches
Indicators	Bridge, Limit In, - Out: yellow LED Protect : red LED Signal: green LED Power: blue LED
Cooling	step switched fan air flow: front to back
Protects	short-circuit, thermal, load-mismatch, DC
Power	AC ~ 230 V / 120V 50 / 60Hz
Dimensions	483 x 88 x 388 mm (2U)
Weight	12,0 kg
