Cadac CDC four:m - Console digitale 24 / 56 canali

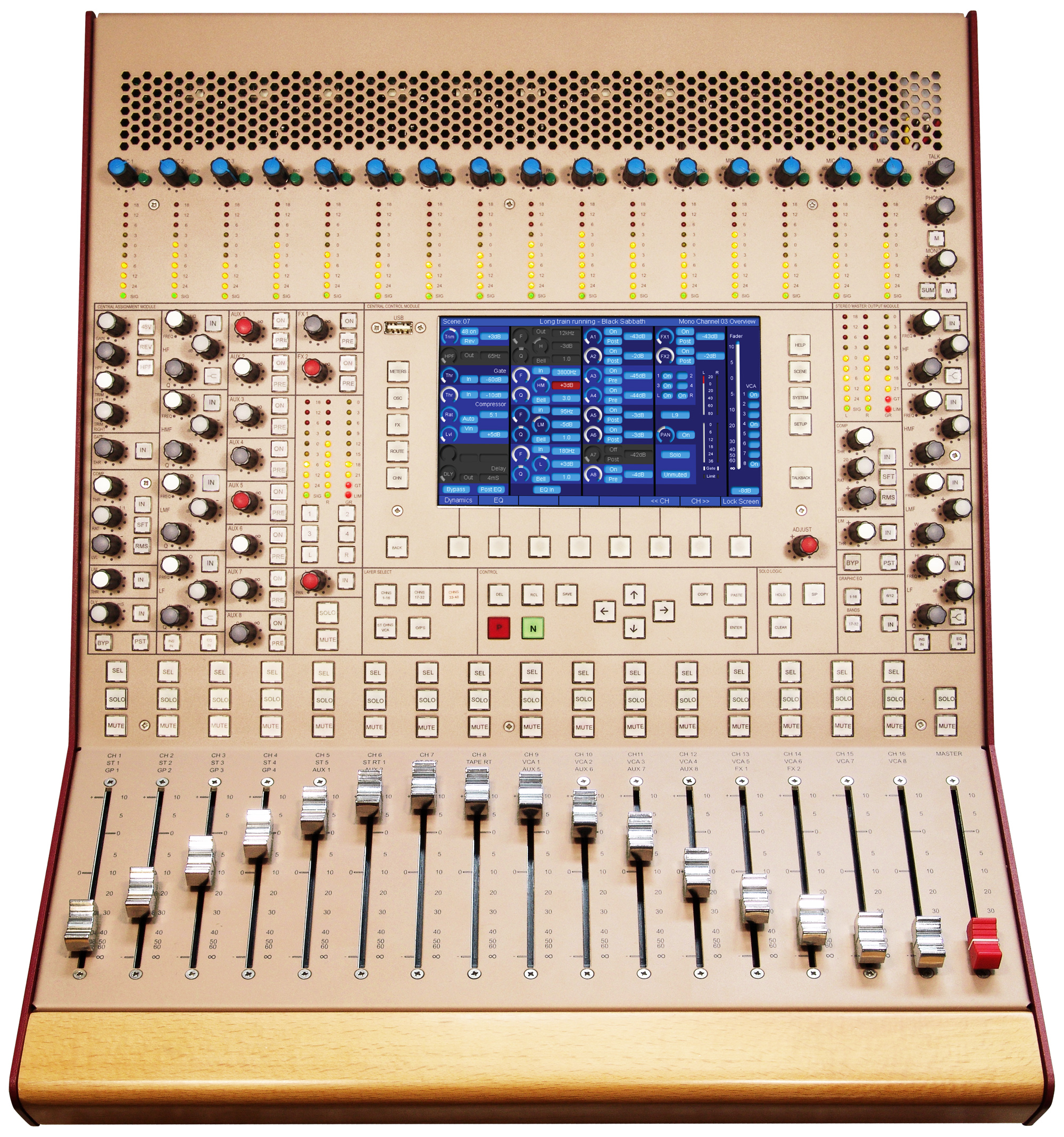

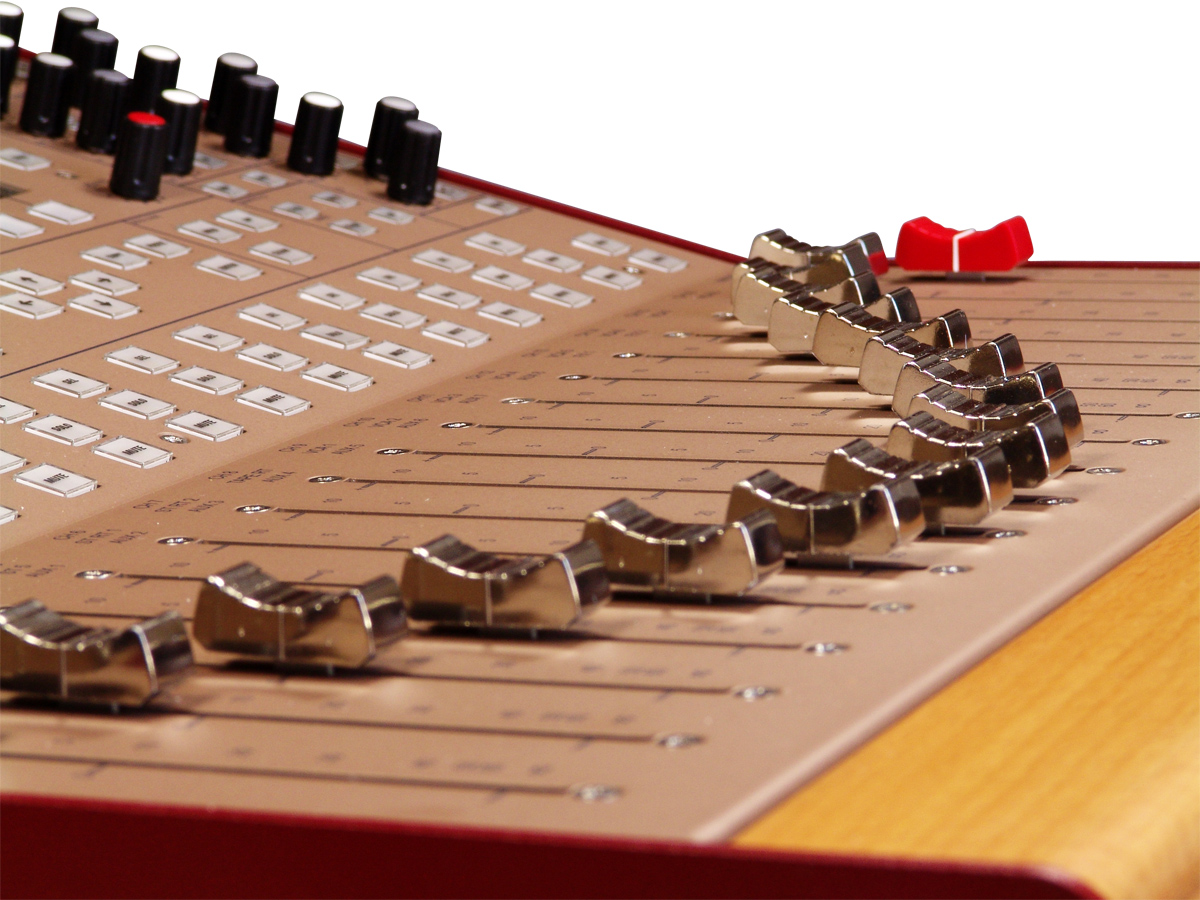

| Il Cadac CDC four:m, è un mixer digitale di nuovissima concezione, interamente progettato e realizzato dal team Cadac, basato su di una piattaforma DSP proprietaria, si presta perfettamente sia per le applicazioni "recording" che "live", consolidando sempre di più l'interesse di Cadac nei nuovi mercati.Questo è possibile grazie ad una interfaccia opzionale Firewire che consente la registrazione ed il playback attraverso lo stesso cavo. Gli ingressi possono venir espansi attraverso una Stage-Box digitale, basata su protocollo MADI che consente di aggiungere ulteriori 32 canali. |
| La console dispone di 16 fader completamente motorizzati, display ad alta risoluzione TFT a colori e memorie di scena completamente richiamabili. La grande qualità del suono del CDC-four:m è ottenuta da un insieme di elementi come i filtri EQ a bassissima distorsione ed i compressori dal suono analogico, appositamente sviluppati da CADAC per mezzo dei convertitori AD/DA Sigma Delta di quarta generazione a 96 kHz 24 bit e dei processori DSP Sharc 32/40-bit floating point. |
| I preamplificatori d'ingresso, realizzati a mezzo di un circuito integrato eccezionale CMRR, dispongono di ampia dinamica e bassissimo rumore.Il CAM (Modulo di Assegnazione Centrale) permetto di controllare l'equalizzazione, l'assegnazione ai gruppi, il controllo dei VCA, gli effetti, le mandate ausiliarie ed i processi di dinamica. Ciascuna di queste funzioni ha un controllo "discreto" ad accesso diretto, privo di sotto-menù o "doubling up". Questo consente alla consolle di venir utilizzata come se fosse una consolle analogica. |

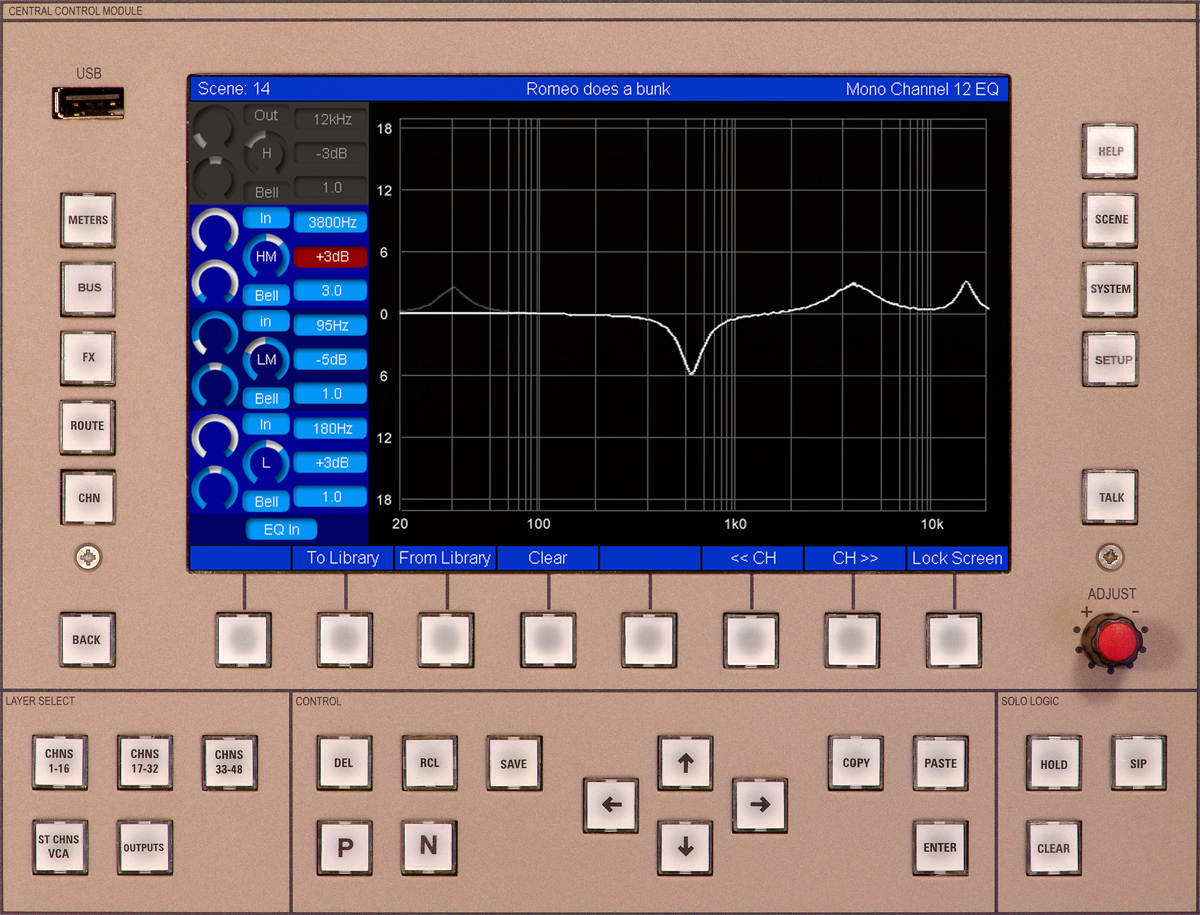

| Un altro grande vantaggio lo si ha dalla sezione Master la quale ha controlli esclusivi diretti all'EQ di uscita e ai processi di dinamica.Il display centrale TFT ad alta risoluzione da 7 pollici a colori, mostra in dettaglio la situazione dei parametri di ogni canale, stato delle scene, degli effetti, del MIDI e del routing.Gli encoder rotativi, a seguito di una pressione, mostrano immediatamente il valore, il modo o la funzione interrogata. Il monitor è in grado di mostrare il complesso sistema di buu e routing, assegnazione degli ausiliari pre/post e informazioni dettagliate sulle dinamiche. |
| Il CDC-four:m ha una porta di espansione dove è possibile installare una scheda di espansione Firewire per il "Recording/Playback" oppure una scheda MADI per espandere gli ingressi per mezzo della stage-box.La scheda Firewire consente di trasportare gli ingressi verso un computer (richiede una porta Firewire) e registrare multitracce a proprio piacere. I canali multitraccia registrati possono venir ascoltati individualmente in playback attraverso il CDC-four:m per regolarne i valori o 'l'EQ anche quando l'artista non è disponibile. |
| La scheda opzionale MADI e il CDC-RACK sono una soluzione ergonomica appositamente disegnati per esterndere le capacità del CDC-four:m. Considerata la bassa latenza dell'interfaccia MADI, è possibile collocare la stage-box CDC-RACK in qualsiasi posto.La stage-box CDC-RACK da 32 canali micro/linea in ingresso con guadagno regolabile da remoto, indicatore di presenza di segnale, phantom power e 16 uscite linea, è l'unità ideale per espandere il CDC-four:m. VAI alla pagina TUTORIAL VIDEO |
The CDC Four is an all new development from the team at CADAC, based on a proprietary DSP mix platform. This signals CADAC’s continued interest in new market sectors.The desk performs equally well with recording as it does in its primary design sector the live market. This is achieved with an optional Firewire interface which allows recording and playback through the same cable. Input channels can be increased for the live sector with the optional MADI Stagebox giving another 32 inputs from stage.The console features 16 fully motorised channel faders, high-resolution TFT colour display and fully recallable scene memory. Superior sound quality is achieved by using specially developed ultra-low distortion EQ filters, true analogue sounding compressors, 96kHz 24bit Delta Sigma AD/DA converters and fourth generation,32/40-bit floating point SHARC processors.The wide dynamic range, low noise mic preamps feature premium input ICs with outstanding CMRR.The Central Assignment Module (CAM) controls Equalisation, Group Assignment, VCA control, Effects, Auxiliary Sends and Dynamics. Each of these functions has a discrete control with no ‘doubling up’ or menu scrolling. This enables the desk to be operated as quickly as its analogue counterpart.Another benefit is the Master Section which has its exclusive controls for Output EQ, and Dynamics.The central 7-inch hi-resolution colour TFT display shows detailed views of all the channel parameters along with Scene control, effects modules, MIDI status, editing and routing control.Rotary encoders can be interrogated by pushing the appropriate control and getting the value, mode or function displayed.Complex buss routing, auxiliary pre/post assignment and detailed dynamics are shown in the display. This leaves more front panel space for quick access to real time functions.The CDC Four has a plug in port which allows either the implementation of a Firewire recording/playback board or a MADI board for live stage to desk expansion.The Firewire board will allow you to stream your input channels to your DAW (computer requires a working Firewire port) and record multiple channels of your choice. Recorded channels can then be played back through the desk into individual channels for adjustment or for system setting when the live artiste is not available.The optional MADI interface and CDC-RACK is an ergonomically designed stage box solution to extend the input and output capability of the CDC FOUR. Using a low latency MADI interface to connect to the CDC FOUR, the stage box can be located virtually anywhere to give either local expansion or be located on the stage to act as a fully featured stage box.Featuring up to 32 MIC/LINE input channels with remote controllable gain, signal present indication and Phantom Power. There are also up to 16 LINE outputs, making the unit perfect for many different applications.
Specifications
-

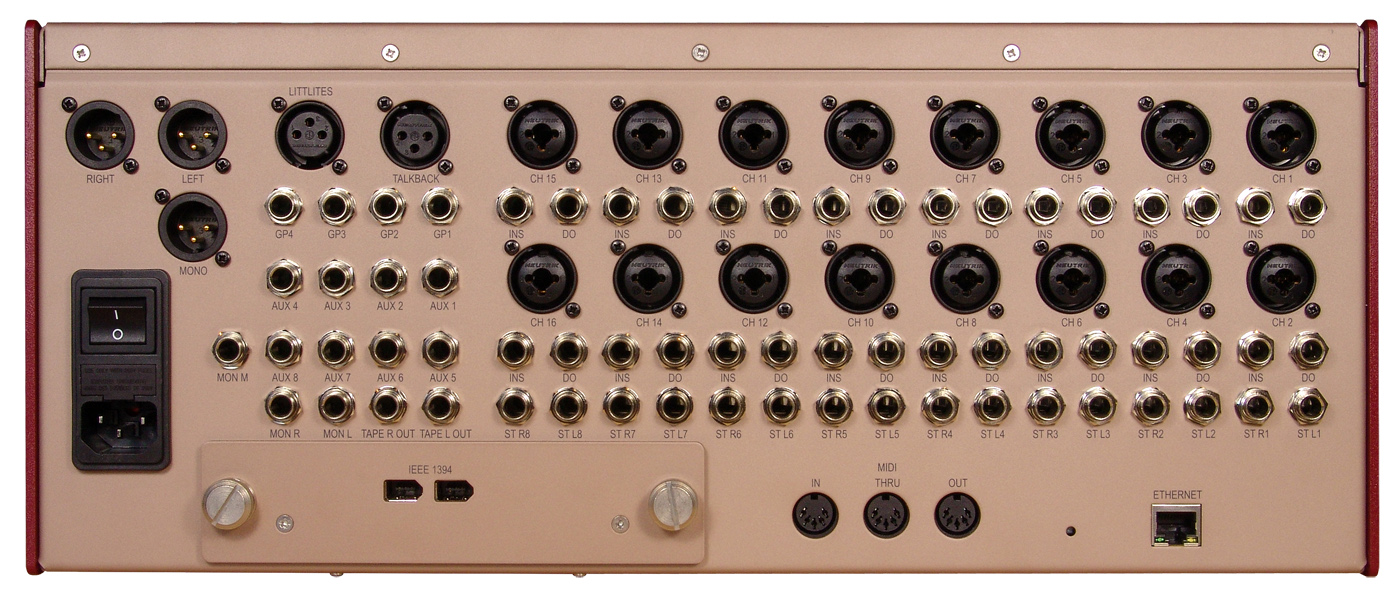

Inputs (total) 41 Mic Input 0-60dB gain and Line input (-16dB pad) 16 Combi XLR jack socket Insert Return (on same jack as Send) 16 1/4inch jack socket Stereo Input channel 8 1/4inch jack socket talkback mic 1 3 pin female XLR Busses (total) 27 Subgroups 4 Aux 8 Stereo Effects Bus (internal only) 2 Aux switchable Pre/Post fader 8 Master LR 2 AFL (stereo) 2 PFL (Mono) 1 Outputs 59 Subgroups with inserts 1/4inch jack socket Subgroups 4 1/4inch jack socket Insert Send (on same jack as Return) 16 1/4inch jack socket Aux outputs 8 1/4inch jack socket Assignable Balanced Insert Send 8 1/4inch jack socket Master Stereo output with inserts 2 3 pin male XLR Master Mono 1 3 pin male XLR Stereo Monitor out (normalised mono) 1/4inch jack socket Stereo Monitor out 2 Monitor Mono out 1 1/4inch jack socket Direct Output 16 1/4inch jack socket Stereo Headphones 1 1/4inch jack socket
16x Input channels have the following features on each Mic amp with 0-60dB gain on XLR of combi socket Line Input on jack of combi socket with in built 16dB PAD Full 4 band parametric equalier with HF and LF switchable to shelf High Pass Filter Gate Compressor Delay 8 aux sends switchabe to be pre or post fader 2 FX send also switchable pre or post fader 8x Stereo inputs have the following Stereo Line input on balanced jack sockets Full 4 band parametric equalier with HF and LF switchable to shelf High Pass Filter Gate Compressor Delay 8 aux sends switchabe to be pre or post fader 2 FX send also switchable pre or post fader 4 group sends with switchable pan control LR send always post pan control Solo switchable to be PFL or AFL with self cancel or Hold function Mute Full 100mm motor fader (switched in layers) Full metering of both signal level and compressor gain {tab= Output |grey}
8 x Aux Outputs have the following features Full 4 band parametric equalier with HF and LF switchable to shelf Compressor Limiter Delay LR send always post pan control Solo switchable to be PFL or AFL with self cancel or Hold function Mute Full 100mm motor fader (switched in layers) Full metering of both signal level and compressor gain Balanced output on jack socket 1 x Master Ouput Full 4 band parametric equalier with HF and LF switchable to shelf Full 32 band graphic EQ Compressor Limiter Solo switchable to be PFL or AFL with self cancel or Hold function Mute Dedicated 100mm output fader 2 x balanced XLR outputs plus balanced mono output on XLR 1 x Headphone output On jack soket at front of console Capable of driving 8ohm headphones {tab= Group |grey}
4 group sends with switchable pan control LR send always post pan control Solo switchable to be PFL or AFL with self cancel or Hold function Mute Full 100mm motor fader (switched in layers) Full metering of both signal level and compressor gain 4 x Group Outputs have the following features Full 4 band parametric equalier with HF and LF switchable to shelf Compressor Limiter Delay LR send always post pan control Solo switchable to be PFL or AFL with self cancel or Hold function Mute Full 100mm motor fader (switched in layers) Full metering of both signal level and compressor gain Balanced output on jack socket 2 x FX Units have the following features These are 2 fully featured effects units Intially the FX will contain 8 effects. 1. HALL BRIGHT => 0.8 - 12.0 Rev time in seconds 2. HALL WARM => 0.8 - 12.0 Rev time in seconds 3. ROOM BRIGHT => 0..4 - 8.0 Rev time in seconds 4. ROOM WARM => 0.4 - 8.0 Rev time in seconds 5. PLATE BRIGHT => 0.4 - 6.0 Rev time in seconds 6. PLATE WARM => 0.4 - 6.0 Rev time in seconds 7. REV+DELAY (1+2 TAP) (1/4 + 1/8 Note) => 70 - 120 Delay time is in BPM 8. REV+ECHO (1+2 TAP) (1/8 + 1/16 Note) LR send always post pan control Solo switchable to be PFL or AFL with self cancel or Hold function Mute {tab= Additional |grey}
Digital Interface - Firewire YES max 32 inputs and Optional Inputs to channels 16 32 outputs on Direct Outputs 16 Firewire Bus Inputs to Stereo channels 16 So routing matrix Direct Outputs from Stereo Channels 16 is required as part of Subgroup output 4 screen interface Aux Outputs 8 Master Stereo Output 2 Sample Frequency 96kHz Bit depth 24bit PSU Internal 90V-240V 50-60Hz (+24v,+15v&-15v) YES Additional Features Desk lamp output (12V/5W) 1 3 pin male XLR VCA Grouping yes AUX Busses Switchable in pairs mono/stereo No Widescreen 4.3" TFT (800*480*RGB) 1 Motor Faders 16 100mm motor faders Non Motor Faders 1 Internal Effects units 2 Permenant Live Metering Channel + Output Physical format of console 16 fader + master fader 19" Rack mount yes Additonal comments This console can be expanded to a total of 48 inputs by an addition stagebox {/tabs}Scarica il Manuale
-
Inputs (total) 41 Mic Input 0-60dB gain and Line input (-16dB pad) 16 Combi XLR jack socket (mic on XLR line on jack) Insert Return (on same jack as Send) 16 1/4inch jack socket Stereo Input channel 8 1/4inch jack socket talkback mic 1 3 pin female XLR Busses (total) 27 Subgroups 4 Aux 8 Stereo Effects Bus (internal only) 2 Aux switchable Pre/Post fader 8 Master LR 2 AFL (stereo) 2 PFL (Mono) 1 Outputs 59 Subgroups with inserts 1/4inch jack socket Subgroups 4 1/4inch jack socket Insert Send (on same jack as Return) 16 1/4inch jack socket Aux outputs 8 1/4inch jack socket Assignable Balanced Insert Send 8 1/4inch jack socket Master Stereo output with inserts 2 3 pin male XLR Master Mono 1 3 pin male XLR Stereo Monitor out (normalised mono) 1/4inch jack socket Stereo Monitor out 2 Monitor Mono out 1 1/4inch jack socket Direct Output 16 1/4inch jack socket Stereo Headphones 1 1/4inch jack socket Digital Interface - Firewire YES max 32 inputs and Optional Inputs to channels 16 32 outputs on Direct Outputs 16 Firewire Bus Inputs to Stereo channels 16 So routing matrix Direct Outputs from Stereo Channels 16 is required as part of Subgroup output 4 screen interface Aux Outputs 8 Master Stereo Output 2 Sample Frequency 96kHz Bit depth 24bit PSU Internal 90V-240V 50-60Hz (+24v,+15v&-15v) YES Additional Features Desk lamp output (12V/5W) 1 3 pin male XLR VCA Grouping yes AUX Busses Switchable in pairs mono/stereo No Widescreen 4.3" TFT (800*480*RGB) 1 Motor Faders 16 100mm motor faders Non Motor Faders 1 Internal Effects units 2 Permenant Live Metering Channel + Output Physical format of console 16 fader + master fader 19" Rack mount yes Additonal comments This console can be expanded to a total of 48 inputs by an addition stagebox 8x Stereo inputs have the following Stereo Line input on balanced jack sockets Full 4 band parametric equalier with HF and LF switchable to shelf High Pass Filter Gate Compressor Delay 8 aux sends switchabe to be pre or post fader 2 FX send also switchable pre or post fader 4 group sends with switchable pan control LR send always post pan control Solo switchable to be PFL or AFL with self cancel or Hold function Mute Full 100mm motor fader (switched in layers) Full metering of both signal level and compressor gain 16x Input channels have the following features on each Mic amp with 0-60dB gain on XLR of combi socket Line Input on jack of combi socket with in built 16dB PAD Full 4 band parametric equalier with HF and LF switchable to shelf High Pass Filter Gate Compressor Delay 8 aux sends switchabe to be pre or post fader 2 FX send also switchable pre or post fader 4 group sends with switchable pan control LR send always post pan control Solo switchable to be PFL or AFL with self cancel or Hold function Mute Full 100mm motor fader (switched in layers) Full metering of both signal level and compressor gain 4 x Group Outputs have the following features Full 4 band parametric equalier with HF and LF switchable to shelf Compressor Limiter Delay LR send always post pan control Solo switchable to be PFL or AFL with self cancel or Hold function Mute Full 100mm motor fader (switched in layers) Full metering of both signal level and compressor gain Balanced output on jack socket 8 x Aux Outputs have the following features Full 4 band parametric equalier with HF and LF switchable to shelf Compressor Limiter Delay LR send always post pan control Solo switchable to be PFL or AFL with self cancel or Hold function Mute Full 100mm motor fader (switched in layers) Full metering of both signal level and compressor gain Balanced output on jack socket 2 x FX Units have the following features These are 2 fully featured effects units Intially the FX will contain 8 effects. 1. HALL BRIGHT => 0.8 - 12.0 Rev time in seconds 2. HALL WARM => 0.8 - 12.0 Rev time in seconds 3. ROOM BRIGHT => 0..4 - 8.0 Rev time in seconds 4. ROOM WARM => 0.4 - 8.0 Rev time in seconds 5. PLATE BRIGHT => 0.4 - 6.0 Rev time in seconds 6. PLATE WARM => 0.4 - 6.0 Rev time in seconds 7. REV+DELAY (1+2 TAP) (1/4 + 1/8 Note) => 70 - 120 Delay time is in BPM 8. REV+ECHO (1+2 TAP) (1/8 + 1/16 Note) LR send always post pan control Solo switchable to be PFL or AFL with self cancel or Hold function Mute 1 x Master Ouput Full 4 band parametric equalier with HF and LF switchable to shelf Full 32 band graphic EQ Compressor Limiter Solo switchable to be PFL or AFL with self cancel or Hold function Mute Dedicated 100mm output fader 2 x balanced XLR outputs plus balanced mono output on XLR 1 x Headphone output On jack soket at front of console Capable of driving 8ohm headphones
