RubiQ System
RubiQ è un sistema ultracompatto a 2 vie composto dal subwoofer passabanda SUB28 e da quattro satelliti Qube3.
Il sistema RubiQ è stato progettato per operare in ambienti di piccole e medie dimensioni che richiedono sonorizzazioni di alta qualità e un design elegante.Active or Self-Powered, RubiQ System is an ultra compact 2Way System composed of one SUB28 Band-Pass Subwoofer and four Qube3 satellites.To perfectly much with a wide variety of decors, RubiQ System ia available in white, black or any custom colour as an option.Specifications
-
{tab= Specifiche Acustiche |grey}Risposta in frequenza........................ 42 Hz - 22000 Hz (+ 3 dB)SUB28: ........................................... 42Hz - 180Hz,Qube3: ........................................... 180 Hz - 22000 HzRisposta della fase............................ 350 Hz - 10 kHz (+/- 45°)Picco massimo SPL........................... 118dBCopertura........................................ Orizzontale: 100°{tab= Trasduttori |grey}SUB28............................................ 2 x 8” altoparlanti a bassa distorsione e a lunga escursione Impedenza nominale.................... 4 ohmsPotenza applicabile.......................... 120 W RMS (AES)Qube3............................................ altoparlante 3” a gamma interaImpedenza nominale....................... 8 ohmsPotenza applicabile......................... 30 W RMS (AES){tab= Specifiche Meccaniche |grey}SUB28........................................... 252 x 450 x 500 mmFinitura cabinet.............................. 15mm di compensato, laccato nero con vernice epossidica; altri colori disp. su richiestaPeso............................................. 17 KgMisura cabinet Qube3..................... 110 x 110 x 80 mmFinitura cabinet.............................. 15mm di compensato, laccato in vari colori Peso............................................. 0.8 Kg{tab= Amplificazione |grey}Potenza erogabile.......................... SUB28: 2x 190 W classe DQube3: 2x 190 W classe DIngressi audio.................................analogici bilanciati;impedenza nominale 10 kohmConnettori.......................................2 xlr femmina (dx e sx)Piedinatura Xlr................................1: terra, 2: positivo, 2: negativo DSP..................................................risoluzione: 24 bit / 96k HzRange dinamico: ...........................113 dBAlimentazione................................Connettore a norma IECTensione in ingresso: 115 V - 250 V + 10% (selezione automatica)
{tab= VARIations |orange}RubiQ è disponibile in vari colori (scala RAL) ma per i più esigenti è possibile ordinare i satelliti in legno massello in diverse essenze.RubiQ Variations{/tabs}
{tab= Accessori |grey}Staffe per il montaggio a soffitto o a parete (non incluse): Omnimount AB1{/tabs} -

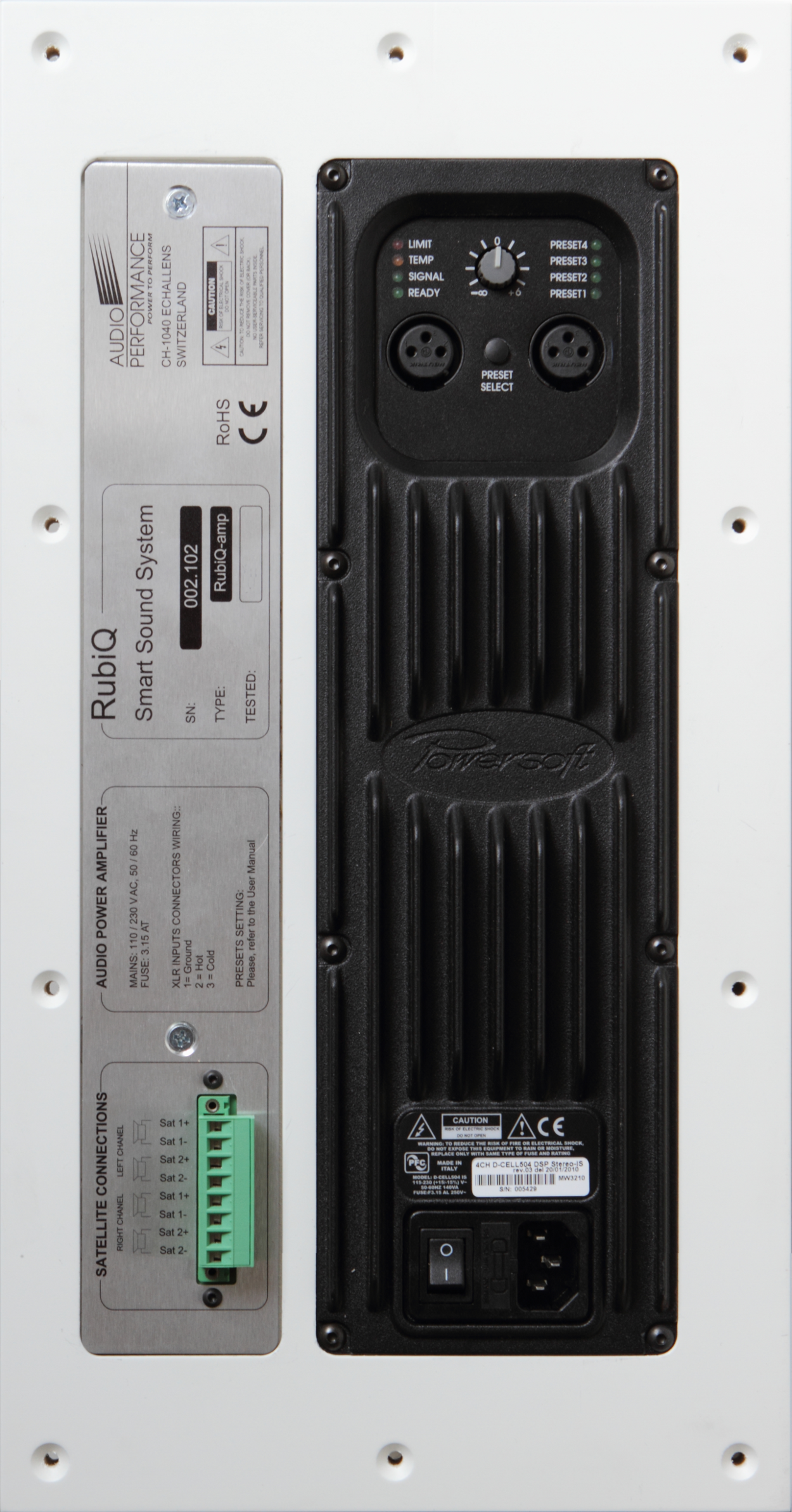

{tab=ACOUSTICAL |grey} Frequency response (1) .....................42Hz - 22’000Hz + / - 3dB (SUB28: 42 - 180Hz; Qube3: 180 - 22’000Hz) Phase response ................................ 350Hz - 10KHz + / - 45° Maximum peak SPL (2) .....................118dB Coverage ..........................................Horizontal: 100° {tab=TRANSDUCERS |grey} SUB28 ............................................... 2 x 8” long excursion, low distortion cone driver Nominal impedance ........................4 Ohms Power Handling ...............................120W RMS (AES) (4) Qube3 ...............................................1 x 3” full range cone driverNominal impedance ........................ 8 Ohms Power Handling ............................... 30W RMS (AES) (4) {tab=MECHANICAL |grey}SUB28 size (WxHxD) ........................252 x 450 x 500 mm Cabinet finish ....................................15 mm plywood, any colours Weight ...............................................17 KgQube3 size (WxHxD) .........................110 x 110 x 80 mmCabinet finish ....................................15 mm plywood, any coloursWeight ...............................................0.8 Kg {tab=AMPLIFIER MODULE |grey}Output power ..................................... SUB28: 2 x 190W Class D Qube3: 2 x 190W Class DAudio input ........................................Type: Analogue differentiel balanced input circuit, Nomimal impédance: 10K Ohms Connectors: 2 x XLR female (L / R) XLR wiring: 1= GND, 2= Hot, 3= Cold DSP ................................................... Resolution: 24bit / 96KHz Dynamic range 113dBAC power ..........................................Connector: IEC Main connector Input Voltage: 115 - 250V nominal + / - 10% Input voltage selection: Automatic {tab=OPTION |grey}Mounting bracket for wall and ceiling. Omnimount AB1 series (not included){/tabs}
{tab= Accessori |grey}Staffe per il montaggio a soffitto o a parete (non incluse): Omnimount AB1{/tabs}
